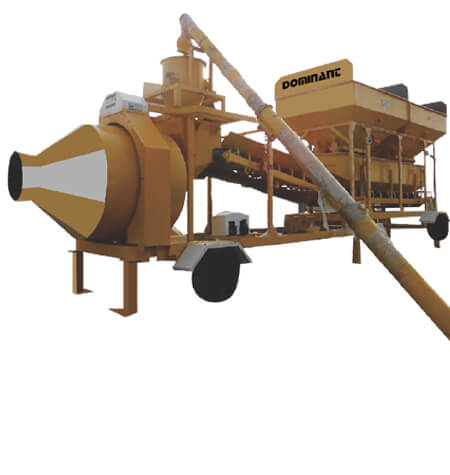

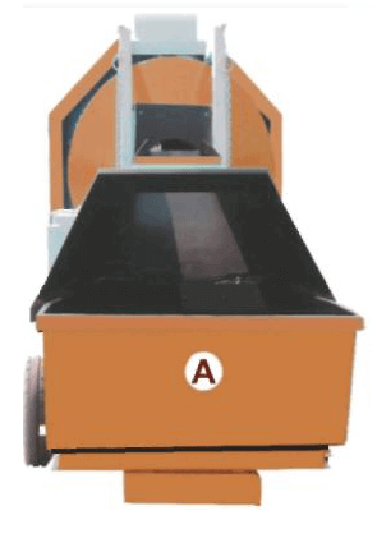

Capacity 10m³/hr, 12m³/hr & 15m³/hr

Salient Features

• Cost Effective
• Compact & robust design
• Easy operation
• Easy Portability
• Low Maintenance Cost
• Reduces labour cost
• Reduces wastage of material at site
• Increases Concrete output
• Produces Homegenous Concrete Quality
• Produces high density of concrete
• Useful for various construction site conditions such as bridge construction, canal line, hills top, inside tunnel, h.e. Project, residential & industrial Construction & also in congested places.

OPTIONAL FEATURES

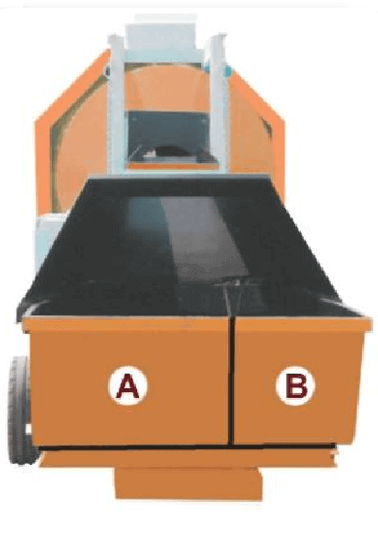

• SINGLE BIN WEIGHING SYSTEM
• TWO BIN WEIGHING SYSTEM

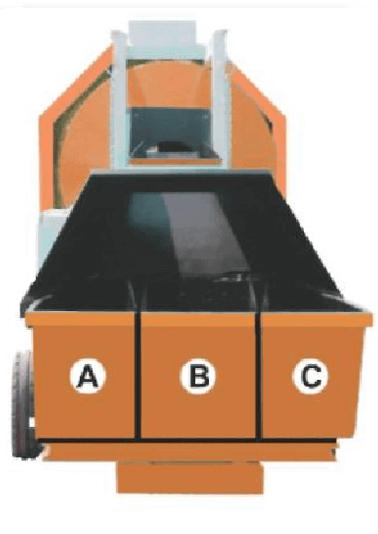

• THREE BIN WEIGHING SYSTEM
• PRINTING FACILITY
• ADMIXTURE DOZING SYSTEM
• CEMENT FEEDING SCREW CONVEYOR SYSTEM
• PNEUMATIC FEEDING SYSTEM FOR AGGREGATE
• LOAD-OUT BELT FOR DISCHARGE OF CONCRETE INTRANSIT MIXER

Capacity 15m³/hr, 20m³/hr.

Salient Features

• Cost Effective
• No Foundation, No Partitioning
• Compact and Robust Design
• Easy Operation
• Easy Portability
• Low Maintenance Cost
• Erection time less than 6 hours
• Negligible Labour Cost
• Reduces wastage of material at site
• Increases Concrete output
• Produces Homegenous Concrete Quality
• 0-99 Continuous Batch Cycle can be selected
• Accommodates different mix Recipes at one time.
• Userful for various construction site conditions such as Bridge Construction, Canal Lines, Hills Top, Inside Tunnel, H.E. Project, Residential and Industrial Construction and also in congested places

Capacity 30m³/hr.

Salient Features

• Cost Effective
• No Foundation, No Partitioning
• Compact & Robust Design
• Easy Operation
• Easy Portability
• Low Maintenance Cost
• Erection Time Less than 6 Hours
• Negligible Labour Cost
• Reduces Wastage of Material At Site
• Increases Concrete Output
• Produces Homogenous Concrete Quality
• 0-99 Continuous Batch Cycle can be Selected
• Accommodates different Mix Recipes at OneTime
• Useful for Various Construction Site ConditionsSuch As Bridge Construction, Canal Line, HillsTop, Inside Tunnel, H.E. Project, Residential &Industrial Construction & Also in Congested Places

Capacity 30m³/hr.

Salient Features

• Cost Effective
• NEGLIGIBLE FOUNDATION
• Compact & Robust Design
• Easy Operation
• Easy Portability
• Low Maintenance Cost
• Erection Time Less than 6 Hours
• Negligible Labour Cost
• Reduces Wastage of Material At Site
• Increases Concrete Output
• Produces Homogenous Concrete Quality
• 0-99 Continuous Batch Cycle can be Selected
• Accommodates different Mix Recipes at OneTime
• Useful for Various Construction Site ConditionsSuch As Bridge Construction, Canal Line, HillsTop, Inside Tunnel, H.E. Project, Residential &Industrial Construction & Also in Congested Places

Capacity 30m³/hr, 45m³/hr

Salient Features

• Cost Effective
• USER FRIENDLY
• LIGHT FOUNDATION, NO PARTITIONING
• COMPACT & ROBUST DESIGN
• Easy Operation
• Easy Portability
• Low Maintenance Cost
• ERECTION TIME LESS THAN 3 DAYS
• Negligible Labour Cost
• Reduces Wastage of Material At Site
• Increases Concrete Output
• Produces Homogenous Concrete Quality
• 0-99 Continuous Batch Cycle can be Selected
• Accommodates different Mix Recipes at OneTime
• Useful for Various Construction Site ConditionsSuch As Bridge Construction, Canal Line, HillsTop, Inside Tunnel, H.E. Project, Residential &Industrial Construction & Also in Congested Places

Capacity 20m / hr., 30m / hr.

Salient Features

• Cost Effective
• No Foundation, No Partitioning
• Compact & Robust Design
• Easy Operation
• Easy Portability
• Low Maintenance Cost
• Erection Time Less than 6 Hours
• Produces Homogenous Concrete Quality
• 0-99 Continuous Batch Cycle can be Selected
• Negligible Labour Cost
• Reduces Wastage of Material At Site
• Increases Concrete Output
• Accommodates different Mix Recipes at One Time
• Useful for Various Construction Site ConditionsSuch As Bridge Construction, Canal Line, HillsTop, Inside Tunnel, H.E. Project, Residential &Industrial Construction & Also in Congested Places

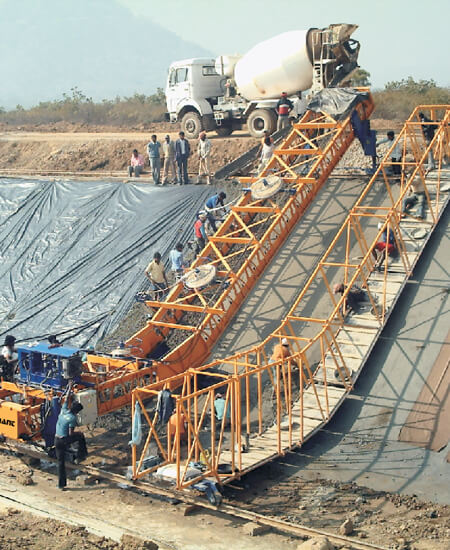

CONCRETE LINING PAVER FINISHER

High Precision Cylinder Finisher for Concrete Slabs such as Canal, Reservoir, Road, Airport, Parking, Factory Floor etc...

Salient Features

• Finishing width from 1 Mtr. to 25Mtrs.
• Machine can finish up to 200m2 / hr. (according to site condition)
• Light weight construction for easy erection and transport.
• The special Under carriage consist of Spreader Auger to spread the concrete to level, the Vibratory Cylinder to compact & finish the concrete to the grade and Vibratory Finishing Cylinder bracket for compaction and finishing.
• Machine can be used alternatively for bed and slope concrete lining.
• Special arrangement is made for PVC inserter, which can insert PVC longitudinally as well as transversely.
• Groove Cutter arrangement can also be supplied (Optional).

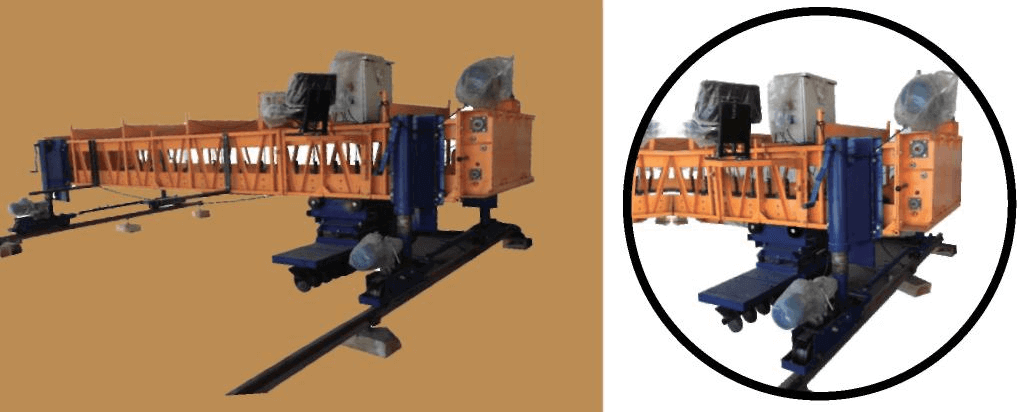

CONCRETE ROAD PAVER FINISHER

ADVANTAGE

• FINISHING CYLINDER WITH GEAR-MOTOR TO MAINTAIN THE RPM AND ACHIEVE CONTINUOUS SPEED
• WIDE HYDRAULIC CONSOLE
• VARIABLE TRAVEL SPEED
• SINGLE OPERATOR CONTROL
• SMOOTH WORKING WITHOUT JERKS
• NEGLIGIBLE OPERATION & RUNNING COST
• SMART RETURNS ON INVESTMENT
• UPGARDATION & MODIFICATION FACILITY AS PER APPLICATION/SITE CONDITION
• OPTIMUM USE OF POWER TO IMPROVE EFFICIENCY OF MACHINE

TECHNICAL DATA

1. FRAME STRUCTURE
• FRAMES ARE MADE OF WELDED STEEL PANELS IN STANDARD LENGTH OF 1.22M & 2.44M (4' & 8')
2. ADJUSTABLE LENGTH
• FRAMES ARE PIN BOLTED WITH EACH OTHER FOR QUICK CONNECTIONS. FRAME LENGTH FROM 4.88M TO 25M CAN BE ADJUSTED. OVERHEAD TRUSS ASSEMBLY IS REQUIRED FOR FRAME LENGTH OVER 18M
3. PRIME MOVER
• 10 H.R 3 PHASE 1440 RPM ELECTRIC MOTOR FOR FIXED CONSOLE
• 5 H.R GEAR-MOTOR FOR UNDERCARRIAGE HYDRAULIC OIL CAPACITY
4. HYDRAULIC OIL CAPACITY
• FIX CONSOLE : 110 LITRES
5. FINISHING ASSEMBLY
• CYLINDER: 0 10" x LONG 4' (1.22M)
• AUGUR :0 10" OPTIONAL
6. ACCESSORIES
• TRIMMING ATTACHMENT
• PVC INSERTER
• GROOVE CUTTER ARRANGEMENT
• TOEING ARRANGEMENT

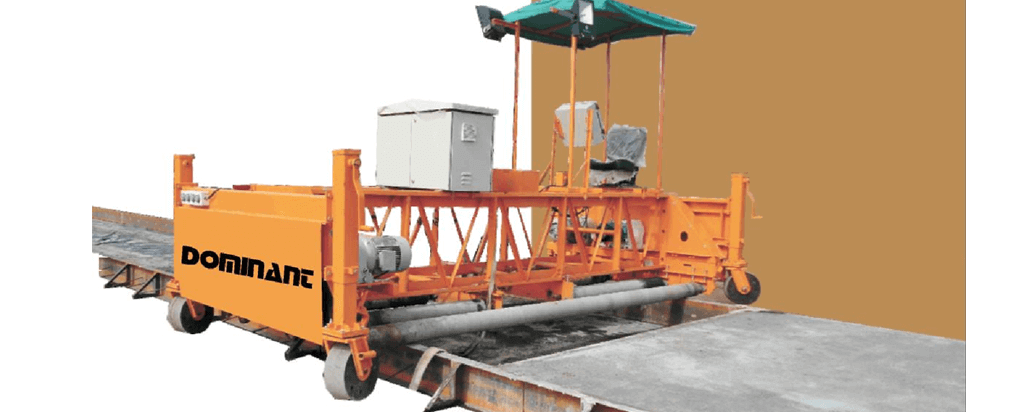

SUPER SCREED FIXED FORM PAVER FINISHER

Salient Features

• DBG 750 Super Screed Fixed Form Paver Finisher Machine is a self-propelled unit to run on side-shuttering/channel. It is a pin connected bolted structure with a finishing roller unit. The complete structure is supported by four heavy duty mechanical jacks with Fibre Wheel. Finishing & Travel speed is adjustable which is controlled by a single operator. The machine finishes the concrete in length.

THE MACHINE CONSISTS OF:

• Pin connected main frame assembly in various sections
• 4 Nos. manually adjustable heavy duty mechanical jacks with Fiber Wheel
• Electrically driven Roller, Auger Assembly and Travel Roller.
• Single point control from Electric Panel unit.
• Tool Box

SENSOR CONCRETE PAVER & TEXTURING/CURING MACHINE

Salient Features

• Electronic over Hydraulic forward and reverse steering and control system for remote grade sensor. Control Panel to monitor gauges and Hydraulic Elevation Jacks.
• DBG 810 Sensor Paver Machine and DBG 910 Sensor Texturing & Curing Machine are equipped with Crawler-Tracks or Foam-Filled Rubber Flotation Tyres. It increases the efficiency of the project where Texturing & Curing Compound are applied.
• Finishing/Texturing assembly travels transversely across the width of the concrete slab. Carriage speed is variable up to 192 fpm.
• High Precision Cylinder Finisher for pavement of concrete slabs such as road & airport projects.
• Vibrating Finishing Cylinder Bracket for compaction and finishing.
• Finishing width from 3.6 Meters to 12.6 Meters.
• Machine can finish up to 200 M2 / hour(according to side condition)
• Light weight construction for easy erection and transport.
• The special undercarriage consists of Spreader Auger to spread the concrete to level, Vibratory Cylinder to compact and finish the concrete to the grade

TECHNICAL SPECIFICATION

1. AUTOMATIC CONTROL SYSTEM
• Electronic-Over-Hydraulic forward and reverse steering and control system for remote grade sensor. FRAME CONSTRUCTION
• Frames are made from welded steel panels in standard length of 2 feet, 4 feet, 8 feet, these are bolted together according to the size of the slab width.
2. LENGTH ADJUSTMENT
• Frames are pin bolted with each other for quick connection. Total length is variable from 3.6m to 12.6m. Longer length can also be supplied. More than 18m long.overhead truss is required.
3. FIX CONSOLE
• Single point control from electronic over- hydraulic console controls the forward and reverse movement of the finishing assembly and the traveling unit.
4. PRIME MOVER
• 15 HP, 1440 RPM, Electric Motor for fix console.
• 5 HP/7.5 HP/10 HP Gear Motor for under carriage.
5. HYDRAULIC OIL CAPACITY
• Fix console : 180 liters.
6. FINISHING ASSEMBLY
• Vibrating Finishing Cylinder Bracket
• Cylinder: 10" dia, 4'long.(l.22 Meters.)
• Auger 10" dia (Extra long)
• TOEING ARRANGEMENT
7. TRACTION SYSTEM
• Four wheels hydraulically powered, chain driven, foam filled rubber solid tires. Tyre size: 22" x 10"/ two hydraulically powered, gear-driven crawler tracks.
• Traction speed: variable up to 63 fpm.
8. HIGH FREQUENCY POKER VIBRATOR
• Electrically high frequency poker vibrator are provided on the mobile assembly to stir the concrete to removes air bubbles in the mix and thus reduces the porosity.
9. TEXTURING ASSEMBLY
• 3.05 m wide and 127 mm long wire lines spaced to meet specific requirements.
• CURING ASSEMBLY
• 810 liters. Reservoir, 6.3 gpm pump with electric motor, pump and controls spray bar, windshield and work platform
10. OPTIONAL ACCESSORIES
• Texturing/Curing System.
• Other options are available to customize machines to accommodate applications and customer needs.

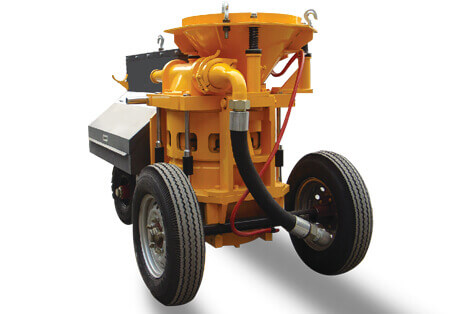

Capacity: 7 - 9 m³/hour

Wet-Mix Shotcreting Machine is an advanced technique of concrete spraying. As compared to dry-mix, it has lot of advantages such as

• Simple Operation
• Achieves Greater Strength
• Uniform Thickness of Concrete Layer
• Environment-Friendly (Low Dust Consistency)
• Less Rebound
• High Productivity(speed-up the operation cycle)

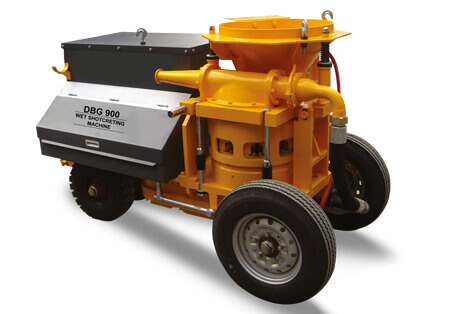

DBG-900 series Wet-Mix Shotcreting Machine is sturdy in design and user-friendly. Its unique feeding system has solved the blocking-problems due to concrete-sticking in cavities of the rotor. Hence, the continuous feeding and thin flow conveying is available all the time. DBG-900 Wet-Mix Shotcreting Machine is specially-designed to reduce the maintenance-cost. It is developed for the application for tunnels, mines, slopes etc.

Salient Features

• Cost Effective
• Low Maintenance Cost
• USER-FRIENDLY
• UNIQUE-DESIGN TO OBTAIN MAXIMUM PRODUCTION AND SOLVES BLOCKING PROBLEMS
• Compact & Robust Design
• Easy Portability
• USEFUL FOR VARIOUS CIVIL CONSTRUCTION PROJECTS SUCH AS
• HYDRO POWER PROJECTS
• DAMS
• TUNNELS
• POWER HOUSE
• SURFACE
• UNDERGROUND
• RAILWAY TUNNELS & ALLIED WORKS
• MINING
• HIGHWAY TUNNELS & SIDE SLOPES
• UNDERGROUND CIVIL WORKS
• ROCK SOIL PROTECTION
• SUBWAY

KEY TECHNOLOGIES

• Anti-Sticking Rotor Cavity: Forced piston-feeding technology avoids sticking in cavity
• Self- Sealing of Concrete: Self-sealing is available with plastic concrete in mixing chamber
• Smooth Thin-Flow Conveying:Smooth thin-flow feeding is reached with radial feeding of three cavities
• Accurate and Smooth Mixing Technology: With unique accelerator measuring system, accurate and smooth mixing is obtained

CORE ATTRACTION

• Efficiency:High comprehensive work efficiency
• Performance:High capability of Shotcrete spraying (Dense and Smooth)
• eliability:Most reliable machine
• Consumption:Low consumption of Concrete and Accelerator

COMPREHENSIVE ADVANTAGES

• Product Advantages: Unique structure, dependable performance, owning the complete intellectual property right
• Scientific Achievements:Comprehensive scientific research of shotcrete with high performance and strength (including concrete materials, proportion of mixture, process technology, performance etc.)
• Service Advantages: Advanced service concept, multi-level and multi-faceted service team, comprehensive shotcrete technical service and easy availability of Spares

HIGH PERFORMANCE

• DBG-900 Wet-Shotcrete Machine with core competence and comprehensive advantages gives excellent performance like less consumption of concrete and accelerator, high work efficiency, good performance of sprayed layer and support effect, minimum rebound etc.
